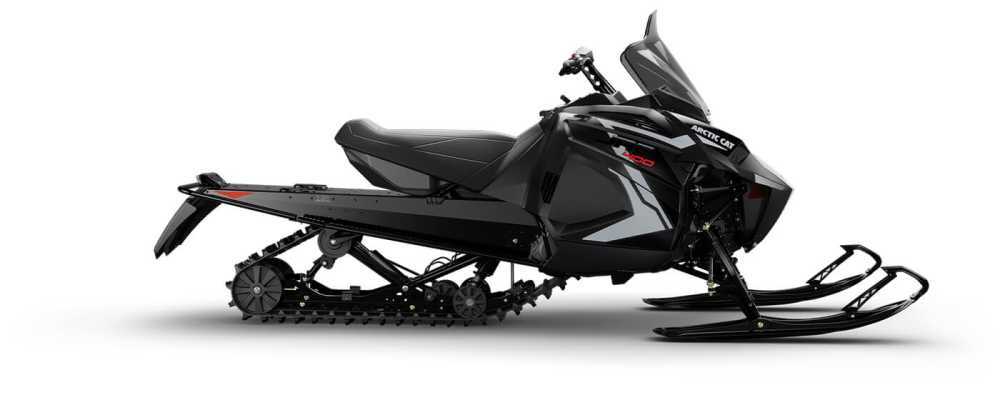

JAG 400
The Trail Sleeper

JAG 400

397cc C-TEC2 Single Cylinder EFI Engine
AMS™ 37 Front Suspension
Hydraulic Twin Tube Shocks
14” x 121” x 1” Hacksaw Track
Electric Start
High Windshield

$9,499 Starting USD*

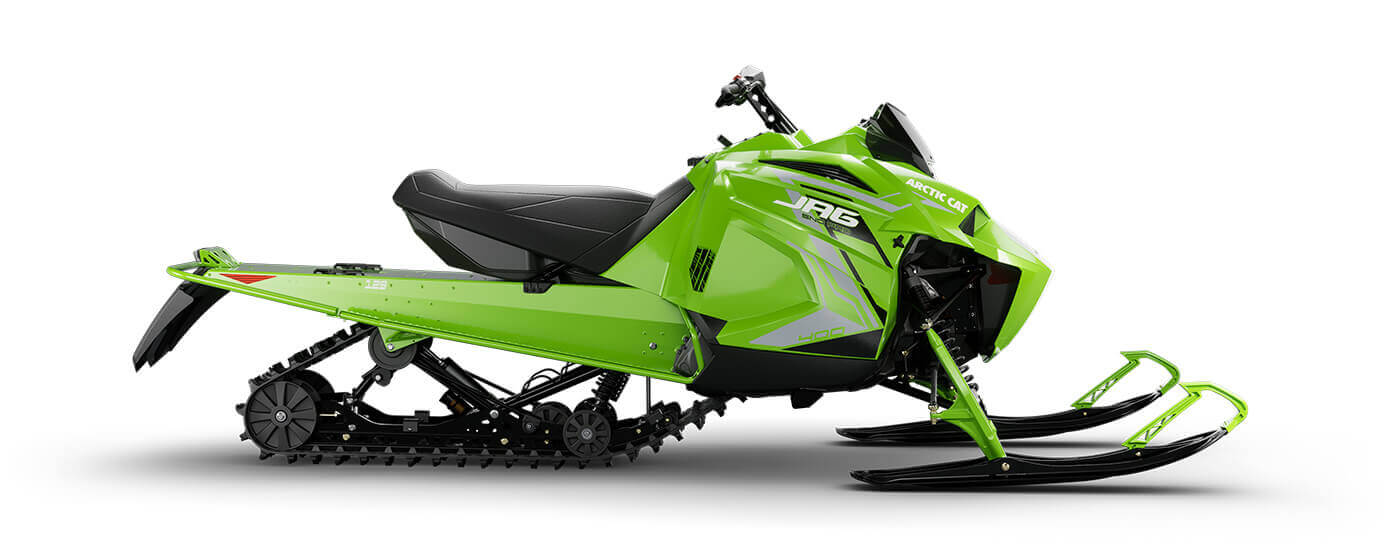

JAG 400 SNO PRO
Dialed for the Trail

JAG 400 SNO PRO

397cc C-TEC2 Single Cylinder EFI Engine
AMS™ 40 Front Suspension w/Sway Bar
AC5S Premium Shocks
SLIDE-ACTION Rear Suspension
15” x 129” x 1.25” Ripsaw Track
Electric Start

$9,999 Starting USD*

It’s all about you

Jag 400
Jag 400
Jag 400 Sno Pro
Jag 400 Sno Pro
Jag 400 Sno Pro SG
Jag 400 Sno Pro SG
Engine
Engine Type
400, 2-Stroke
400, 2-Stroke
400, 2-Stroke
Displacement
397cc
397cc
397cc
Cooling
Liquid
Liquid
Liquid
Cylinders
1
1
1
Bore x Stroke
85 x 70 mm
85 x 70 mm
85 x 70 mm
Lubrication
Electronic Injection
Electronic Injection
Electronic Injection
Ignition
Digitally Controlled CDI
Digitally Controlled CDI
Digitally Controlled CDI
Engine Stator Output
270W @ 3000 RPM
270W @ 3000 RPM
270W @ 3000 RPM
Fuel Delivery
Electronic Fuel Injected (EFI)
Electronic Fuel Injected (EFI)
Electronic Fuel Injected (EFI)
Exhaust
APV with Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler
APV with Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler
APV with Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler
Fuel Capacity
11.7 gal
11.7 gal
11.7 gal
Oil System Capacity
3.25 qt
3.25 qt
3.25 qt
Coolant System Capacity
4.6 qt
4.6 qt
4.6 qt
Minimum Octane
91
91
91
Powertrain
Drive Clutch
CVTech Trailbloc
CVTech Trailbloc
CVTech Trailbloc
Driven Clutch
CVTech Invance
CVTech Invance
CVTech Invance
Drive System
Arctic Drive System
Arctic Drive System
Arctic Drive System
Brakes
Stealth Hydraulic Master Cylinder
Stealth Hydraulic Master Cylinder
Stealth Hydraulic Master Cylinder
Clutch Calibration
0-5,000 ft
0-5,000 ft
0-5,000 ft
Gearing
19/50
19/50
19/50
Chain Pitch
90
90
90
Track Drive Sprocket
9 tooth, 2.52 pitch, involute
8 Tooth, 2.86 Pitch, Involute
8 Tooth, 2.86 Pitch, Involute
Reverse
Push-Button Engine
Push-Button Engine
Push-Button Engine
Suspension
Front Suspension
Arctic Mountain Suspension (AMS)
Arctic Mountain Suspension (AMS)
Arctic Mountain Suspension (AMS)
Ski Shocks
Hydraulic Twin Tube
AC5S
AC5S
Sway Bar
Standard
N/A
N/A
Front Travel
7.2 in
7.2 in
7.2 in
Rear Suspension
Slide-rail, dual shock and adjustable torsion springs
SLIDE-ACTION with 3 wheel rear axle assembly and adjustable torsion springs
SLIDE-ACTION with 3 wheel rear axle assembly and adjustable torsion springs
Front Track Shock
Hydraulic Twin Tube
AC5S
AC5S
Rear Track Shock
Hydraulic Twin Tube
AC5S
AC5S
Rear Travel
10.7
13.5
13.5
Dimensions
Overall Chassis Length
115 in
115 in
115 in
Overall Chassis Width
44-45 in
46-47 in
46-47 in
Overall Chassis Height
51 in
45 in
45 in
Track Type
Hacksaw
Ripsaw
Ripsaw
Track Width
14 in
15 in
15 in
Track Length
121 in
129 in
129 in
Lug
1.00 in
1.25 in
1.25 in
Pitch
2.86 in
2.86 in
2.86 in
Ski Stance
37.5-38.5 in - Adjustable
39.5-40.5 in - Adjustable
39.5-40.5 in - Adjustable
Ski Type/Width
Trail - 6 in
Trail - 6 in
Trail - 6 in
Runner Type
Single runner w/ carbide
Twin Split
Twin Split
Instrumentation
Type of Gauge
Standard
Standard
Standard
Speedometer
Digital
Digital
Digital
Tachometer
Digital
Digital
Digital
Odometer
Digital
Digital
Digital
Fuel
Digital
Digital
Digital
Oil
Indicator Light
Indicator Light
Indicator Light
Coolant
Indicator Light
Indicator Light
Indicator Light
Clock
N/A
N/A
N/A
Battery Voltage
N/A
N/A
N/A
Altimeter
N/A
N/A
N/A
Hours
Digital
Digital
Digital
Features
Color
Black
Green
White
Heat Exchanger
Front Long Tunnel
Front Long Tunnel
Front Long Tunnel
Starter
Turnkey Electric Start
Turnkey Electric Start
Turnkey Electric Start
Handlebars
Hooked
Hooked
Hooked
Lighting
Halogen 1-Bulb
Halogen 1-Bulb
Halogen 1-Bulb
Seating
Mid-Size
Mid-Size
Mid-Size
Standard Accessories
Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch
Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch
Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch
Windshield
15.5 in High
4-inch Low
4-inch Low
Trail Performance, Reimagined

JAG

The Jag is back — bringing its race-inspired heritage to the trail in a way few expect. Compact and approachable, the Jag lineup is built to surprise, delivering sharp handling and confident cornering that punches well above its weight.

JAG 400
The Trail Sleeper

JAG 400

397cc C-TEC2 Single Cylinder EFI Engine
AMS™ 37 Front Suspension
Hydraulic Twin Tube Shocks
14” x 121” x 1” Hacksaw Track
Electric Start
High Windshield

2027 $9,499 Starting USD*

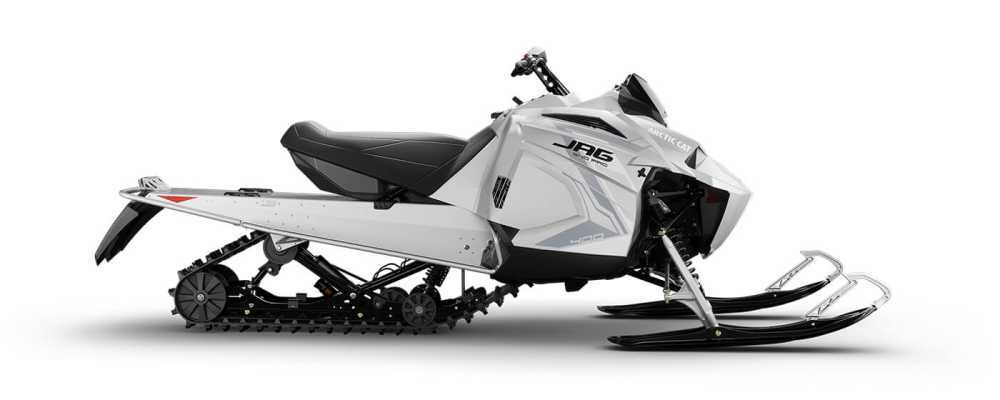

JAG 400 SNO PRO SG
SPRING ORDER ONLY MODEL

JAG 400 SNO PRO SG

397cc C-TEC2 Single Cylinder EFI Engine
AMS™ 40 Front Suspension w/Sway Bar
AC5S Premium Shocks
SLIDE-ACTION Rear Suspension
15” x 129” x 1.25” Ripsaw Track
Electric Start

2027 $10,099 Starting USD*
JAG 400 SNO PRO
Dialed for the Trail

JAG 400 SNO PRO

397cc C-TEC2 Single Cylinder EFI Engine
AMS™ 40 Front Suspension w/Sway Bar
AC5S Premium Shocks
SLIDE-ACTION Rear Suspension
15” x 129” x 1.25” Ripsaw Track
Electric Start

2027 $9,999 Starting USD*

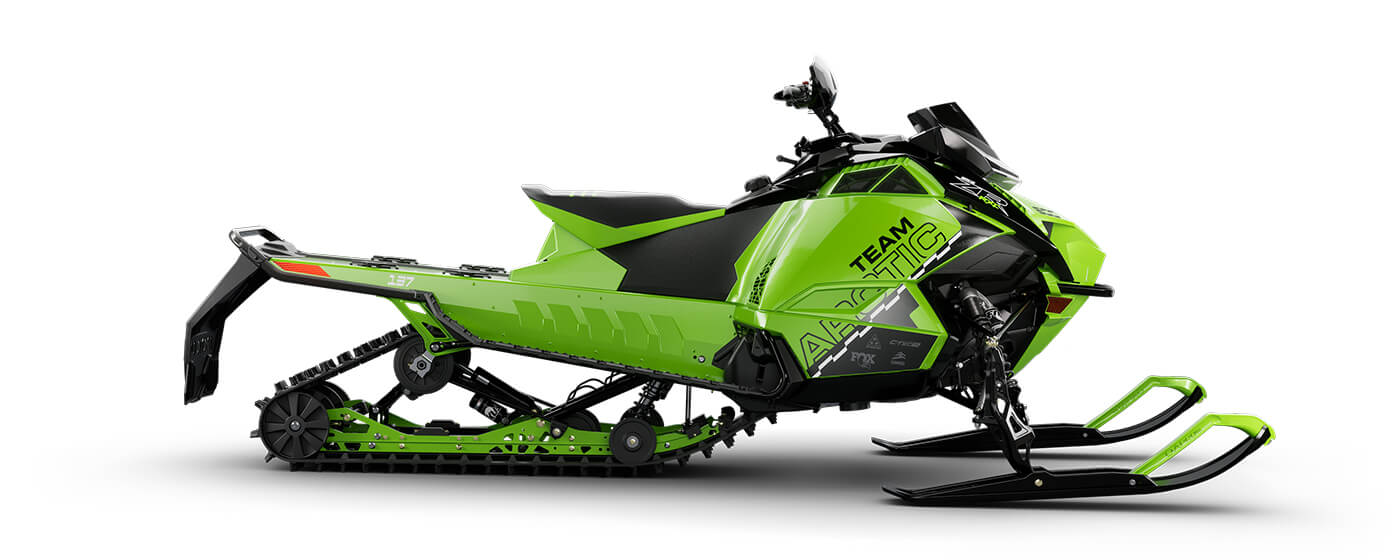

ZR 600 RXC EPS
Ride Like a Pro

ZR 600 RXC EPS

599cc C-TEC2 Twin Cylinder EFI Engine
AWS™ 42 Front Suspension
Fox QS3R/QS3, QS3R Black Ano Shocks
R-XC SLIDE-ACTION Rear Suspension
Electronic Power Steering
C&A Pro XPT Skis
Arctic Cat G8 Display

2027 $19,199 Starting USD*
ZR 600 RXC EPS
Master the Track

ZR 858 RXC EPS

858cc C-TEC2 Twin Cylinder EFI Engine
AWS™ 42 Front Suspension
Fox QS3R/QS3, QS3R Black Ano Shocks
R-XC SLIDE-ACTION Rear Suspension
Electronic Power Steering
C&A Pro XPT Skis
Arctic Cat G8 Display

2027 $20,899 Starting USD*
Vehicle Specs
JAG 400
JAG 400 SNO PRO SG
JAG 400 SNO PRO
Engine Type
400, 2-Stroke
400, 2-Stroke
400, 2-Stroke
Displacement comptab-infoalt7-icon
397cc
397cc
397cc
Cooling
Liquid
Liquid
Liquid
A Winning Legacy

ZR R-XC

The ZR® R-XC lineup brings cross-country race pedigree to everyday trail riding. Built on the lightweight, centralized CATALYST platform, these sleds are engineered for control, durability and a relentless pace. Electronic Power Steering reduces fatigue and keeps handling precise when conditions get demanding. When the terrain gets rough, R-XC stays sharp.

ZR 600 RXC EPS
Ride Like a Pro

ZR 600 RXC EPS

599cc C-TEC2 Twin Cylinder EFI Engine
AWS™ 42 Front Suspension
Fox QS3R/QS3, QS3R Black Ano Shocks
R-XC SLIDE-ACTION Rear Suspension
Electronic Power Steering
C&A Pro XPT Skis
Arctic Cat G8 Display

2027 $19,199 Starting USD*
ZR 600 RXC EPS
Master the Track

ZR 858 RXC EPS

858cc C-TEC2 Twin Cylinder EFI Engine
AWS™ 42 Front Suspension
Fox QS3R/QS3, QS3R Black Ano Shocks
R-XC SLIDE-ACTION Rear Suspension
Electronic Power Steering
C&A Pro XPT Skis
Arctic Cat G8 Display

2027 $20,899 Starting USD*
